5053002017 | Raychem

Heatshrink tubing, 2:1, (3.2/1.6 mm), PE, crosslinked, red, 5053002017

Order No.: 35P3005
EAN: 4099891272715
MPN:
5053002017
RNF-100-1/8-2-STK
Series: RNF-100
Raychem

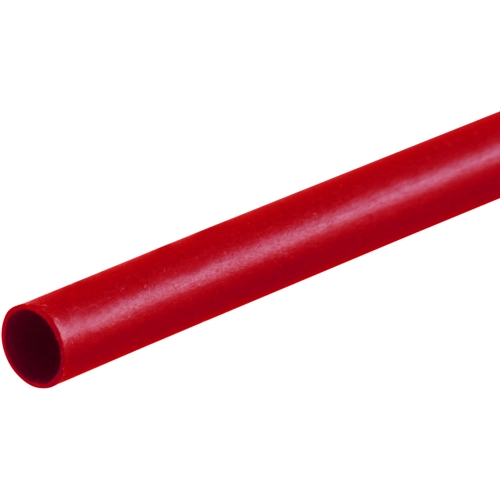

5053002017 Raychem Heat Shrink Tubing
Image may differ
Unit Price (€ / pc.)
1.3209 € *
Available: 0 pcs.
Available in 5 Days: 1,242 pcs.
Leadtime: 30 Weeks **
Total Price:
1.32 € *
Price list
Quantity
Price per unit*
120 pcs.
1.3209 €
360 pcs.
1.2971 €
*incl. VAT plus shipping costs
**Subject to prior sale

RNF-100 Heat-shrinkable Tubing

Features

  • 2:1 shrink ratio
  • Excellent physical, chemical, and electrical properties that meet or exceed industrial and military standards for highly reliable, general purpose tubing
  • Flexible
  • Flame-retardant

Applications

  • Designed to provide superior mechanical, thermal, and fluid-resistance performance in demanding enviroments.
  • Widely used to provide insulation and strain relief of wire terminations and connections.
  • Used for jacketing wire bundles and light-duty harnesses where superior abrasion resistance is a plus.
Technical specifications
Colour red
Inner diameter after shrinkage 1.6 mm
Inner diameter before shrinkage 3.2 mm
contains glue inside No
Length 1.2 m
Material PE, crosslinked
max. operating temperature 135 °C
min. operating temperature -55 °C
Shrinking rate 2:1
Shrinking temperature 95 °C
Wall thickness 0.51 mm
Inch Size 1/8
Logistics
Country of origin CN
Customs tariff number 39173200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
