5053012028 | Raychem

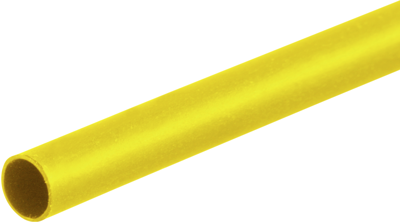

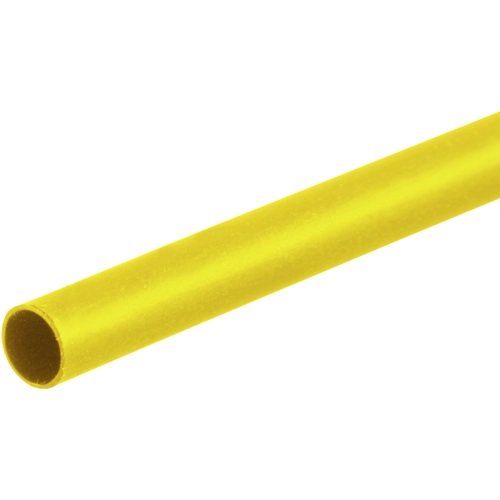

Heatshrink tubing, 2:1, (3.2/1.6 mm), PE, crosslinked, yellow, 5053012028
Unit Price (€ / pc.)
3.2963 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
3.30 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2963 €
10 pcs.
3.0345 €
50 pcs.
2.7251 €
100 pcs.
2.4514 €
*incl. VAT plus shipping costs
**Subject to prior sale
Heat shrink tubing, HRSR-125FR-10, Raychem
HRSR-125FR-10 is a high-ratio (HR) heatshrinkable tubing, with expansion ratios as high as 5.6 to 1, is designed to accommodate large size differences between cables and cable connectors and backshells, thus simplifying repair of damaged cable.
Features
- 5.6:1 Shrink ratio
- Offers toughness and durability
- Provides excellent insulation and abrasion protection
- RoHS compliant
Technical specifications
| Farbe | gelb | |
| Innendurchmesser nach Schrumpfung | 1.6 mm | |
| Innendurchmesser vor Schrumpfung | 3.2 mm | |
| Innenkleber vorhanden | No | |
| Länge | 1.2 m | |
| Material | PE, vernetzt | |
| max. Temperatur | 135 °C | |
| min. Temperatur | -55 °C | |
| Schrumpfrate | 2:1 | |
| Schrumpftemperatur | 95 °C | |
| Wanddicke | 0.51 mm | |
| Zollgröße | 1/8 |
Download
Logistics
| Ursprungsland | NL |
| Zolltarifnummer | 39269097 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
