5053032054 | Raychem

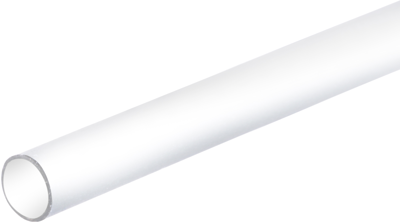

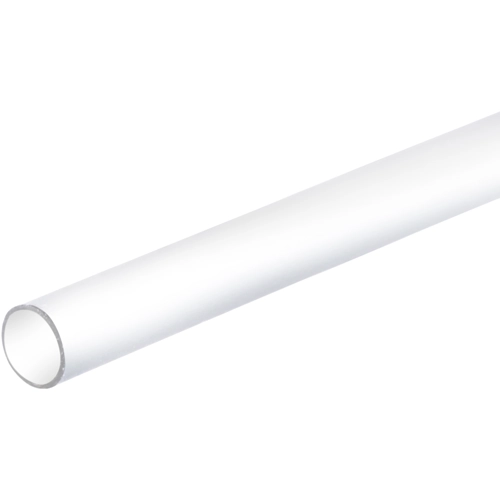

Heatshrink tubing, 2:1, (3.2/1.6 mm), PE, crosslinked, white, 5053032054
Unit Price (€ / mtr.)
1.8802 € *
Available: 0 mtr.
Available in 5 Days: 1,236 mtr.
Leadtime: 12 Weeks **
Total Price:
1.88 € *
Price list
Quantity
Price per unit*
60 mtr.
1.8802 €
300 mtr.
1.5589 €
*incl. VAT plus shipping costs
**Subject to prior sale
Heat shrink tubing, HRSR-300FR-10, Raychem
HRSR-300FR-10 is a high-ratio (HR) heatshrinkable tubing, with expansion ratios as high as 5.6 to 1, is designed to accommodate large size differences between cables and cable connectors and backshells, thus simplifying repair of damaged cable.
Features
- 5.6:1 Shrink ratio
- Offers toughness and durability
- Provides excellent insulation and abrasion protection
- RoHS compliant
Technical specifications
| Colour | white | |
| Inner diameter after shrinkage | 1.6 mm | |
| Inner diameter before shrinkage | 3.2 mm | |
| contains glue inside | No | |
| Length | 1.2 m | |
| Material | PE, crosslinked | |
| max. operating temperature | 135 °C | |
| min. operating temperature | -55 °C | |
| Shrinking rate | 2:1 | |
| Shrinking temperature | 95 °C | |
| Wall thickness | 0.51 mm | |
| Inch Size | 1/8 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
