5053082028 | Raychem

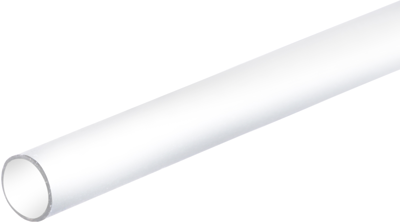

Heatshrink tubing, 2:1, (4.8/2.4 mm), PE, crosslinked, white, 5053082028
Unit Price (€ / mtr.)
2.7489 € *
Available: 0 mtr.
Leadtime: 12 Weeks **
Total Price:
2.75 € *
Price list
Quantity
Price per unit*
1 mtr.
2.7489 €
10 mtr.
2.5347 €
50 mtr.
2.2729 €
100 mtr.
2.0468 €
*incl. VAT plus shipping costs
**Subject to prior sale
Heat-shrinkable tubing, 5053082028, RAYCHEM
This polyolefin tubing is designed to provide superior mechanical, thermal and fluid-resistance performance in demanding enviroments.
Widely used to provide insulation and strain relief of wire terminations and connections.
Features
- Superior abrasion and solvent resistance
- Excellent physical chemical
- Highly flexible
- Flame-retardant
Technical specifications
| Shrinking rate | 2:1 | |
| Inner diameter before shrinkage | 4.8 mm | |
| Inner diameter after shrinkage | 2.4 mm | |
| Length | 1.2 m | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 135 °C | |
| contains glue inside | No | |
| Wall thickness | 0.51 mm | |
| Colour | weiß | |
| Material | PE, vernetzt | |
| Shrinking temperature | 95 °C | |
| Inch Size | 3/16 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
