5053084023 | Raychem

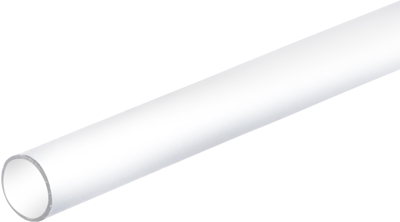

Heatshrink tubing, 2:1, (4.8/2.4 mm), PE, crosslinked, white, 5053084023
Unit Price (€ / mtr.)
1.8683 € *
Available: 0 mtr.
Leadtime: 4 Weeks **
Total Price:
1.87 € *
Price list
Quantity
Price per unit*
1 mtr.
1.8683 €
10 mtr.
1.6898 €
50 mtr.
1.5232 €
100 mtr.
1.3685 €
*incl. VAT plus shipping costs
**Subject to prior sale
Heat shrink tubing, HX-SCE-1K-12.7-50-9, Raychem
HX-SCE-1K-12.7-50-9 is a heat shrinkable wire marker, made from highly flame retardant, heat-shrinkable fluoropolymer. This product is designed for use in high temperature applications where extreme resistance to fuels, lubricants and solvents is required.
Features
- 2:1 Shrink ratio
- Space vehicle applications
- Fluid resistance
- Highly flame retardant
Technical specifications
| Farbe | weiß | |
| Innendurchmesser nach Schrumpfung | 2.4 mm | |
| Innendurchmesser vor Schrumpfung | 4.8 mm | |
| Innenkleber vorhanden | No | |
| Material | PE, vernetzt | |
| max. Temperatur | 135 °C | |
| min. Temperatur | -55 °C | |
| Schrumpfrate | 2:1 | |
| Schrumpftemperatur | 95 °C | |
| Wanddicke | 0.51 mm | |
| Zollgröße | 3/16 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 39173200 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
