5053212042 | Raychem

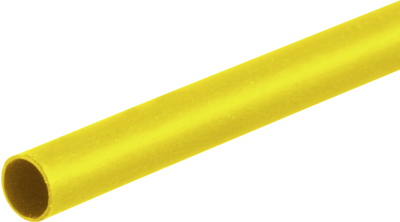

Heatshrink tubing, 2:1, (12.7/6.4 mm), PE, crosslinked, yellow, 5053212042
Unit Price (€ / mtr.)
6.3189 € *
Available: 0 mtr.
Leadtime: 30 Weeks **
Total Price:
6.32 € *
Price list
Quantity
Price per unit*
1 mtr.
6.3189 €
10 mtr.
5.8191 €
50 mtr.
5.2360 €
100 mtr.
4.7124 €
*incl. VAT plus shipping costs
**Subject to prior sale
Heat shrink tubing, LSTT-2.4-0-SP, Raychem
LSTT-2.4-0-SP is a highly flexible, low-shrink-temperature, heat-shrinkable tubing. This product it`s low shrink temperature offers exceptionally fast recovery for maximum efficiency in high-volume commercial applications and makes it suitable for use on or near delicate, temperature-sensitive materials, such as PVC jacketed wire and cable.
Features
- 2:1 Shrink ratio
- Rapid recovery at low temperatures
- Not flame-retardant
- Excellent physical and electrical performance
- RoHS compliant
Technical specifications
| Farbe | gelb | |
| Innendurchmesser nach Schrumpfung | 6.4 mm | |
| Innendurchmesser vor Schrumpfung | 12.7 mm | |
| Innenkleber vorhanden | No | |
| Länge | 1.2 m | |
| Material | PE, vernetzt | |
| max. Temperatur | 135 °C | |
| min. Temperatur | -55 °C | |
| Schrumpfrate | 2:1 | |
| Schrumpftemperatur | 95 °C | |
| Wanddicke | 0.64 mm | |
| Zollgröße | 1/2 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 39173200 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
