5053314033 | Raychem

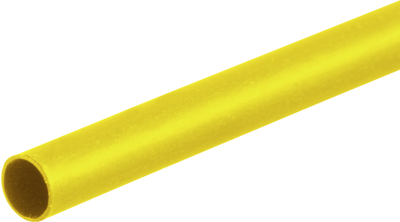

Heatshrink tubing, 2:1, (25.4/12.7 mm), PE, crosslinked, yellow, 5053314033
Unit Price (€ / mtr.)
11.6977 € *
Available: 0 mtr.
Leadtime: 56 Weeks **
Total Price:
11.70 € *
Price list
Quantity
Price per unit*
1 mtr.
11.6977 €
10 mtr.
10.7695 €
50 mtr.
9.6866 €
100 mtr.
8.7227 €
*incl. VAT plus shipping costs
**Subject to prior sale
Heat shrink tubing, RAYRIM-NR7-0-SP, Raychem
RAYRIM-NR7-0-SP is an extruded strip internally coated with a heat activated adhesive, so that on heating the profile changes from a "V" to a "U" section and the adhesive bonds to the substrate profile.
Features
- Flexible to allow for protection of curved edges
- RoHS compliant
Technical specifications
| Farbe | gelb | |
| Innendurchmesser nach Schrumpfung | 12.7 mm | |
| Innendurchmesser vor Schrumpfung | 25.4 mm | |
| Innenkleber vorhanden | No | |
| Material | PE, vernetzt | |
| max. Temperatur | 135 °C | |
| min. Temperatur | -55 °C | |
| Schrumpfrate | 2:1 | |
| Schrumpftemperatur | 95 °C | |
| Wanddicke | 0.89 mm | |
| Zollgröße | 1 |
Download
Logistics
| Ursprungsland | GB |
| Zolltarifnummer | 39269097 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
