5053332035 | Raychem

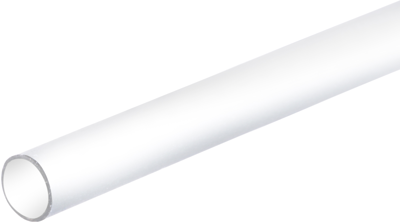

Heatshrink tubing, 2:1, (25.4/12.7 mm), PE, crosslinked, white, 5053332035
Unit Price (€ / pc.)
9.3296 € *
Available: 0 pcs.
Leadtime: 30 Weeks **
Heat shrink tubing, RBK-ILS-125-NR1-0-50MM, Raychem
RBK-ILS-125-NR1-0-50MM is a dual-wall, heat-shrinkable tubing designed to provide moisture proof encapsulation of an electrical splice in an automotive environment. Moisture may enter a splice area directly or indirectly via a capillary action between individual wires, thus causing corrosion.
Features
- Excellent environmental seal
- Small cross-sectional profile
- Simultaneous sealing, protection and insulation – in one process pass
- RoHS compliant
Technical specifications
| Farbe | weiß | |
| Innendurchmesser nach Schrumpfung | 12.7 mm | |
| Innendurchmesser vor Schrumpfung | 25.4 mm | |
| Innenkleber vorhanden | No | |
| Länge | 1.2 m | |
| Material | PE, vernetzt | |
| max. Temperatur | 135 °C | |
| min. Temperatur | -55 °C | |
| Schrumpfrate | 2:1 | |
| Schrumpftemperatur | 95 °C | |
| Wanddicke | 0.89 mm | |
| Zollgröße | 1 |
Download
Logistics
| Ursprungsland | GB |
| Zolltarifnummer | 39173200 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
