5054424009 | Raychem

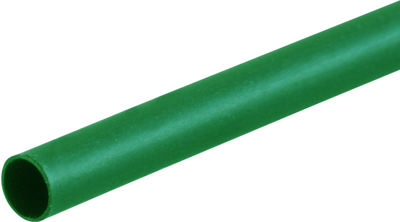

Heatshrink tubing, 2:1, (3.2/1.6 mm), PE, crosslinked, green, 5054424009
Unit Price (€ / mtr.)
1.9635 € *
Available: 0 mtr.
Leadtime: 56 Weeks **
Total Price:
1.96 € *
Price list
Quantity
Price per unit*
1 mtr.
1.9635 €
10 mtr.
1.7850 €
50 mtr.
1.6065 €
100 mtr.
1.4518 €
*incl. VAT plus shipping costs
**Subject to prior sale
Heat shrink tubing, RNF-100-1/16-2-SP, Raychem
RNF-100-1/16-2-SP is a flexible, flame-retardant, general purpose, polyolefin tubing. This product is designed to provide superior mechanical (abrasion, cutthrough, and strain relief), thermal, and fluid-resistance performance in demanding environments. Widely used to provide insulation and strain relief of wire terminations and connections.
Features
- 2:1 shrink ratio
- Flexible; conforms to irregular shapes
- Flame-retardant
- Wide range of sizes and colors
- RoHS compliant
Technical specifications
| Farbe | grün | |
| Innendurchmesser nach Schrumpfung | 1.6 mm | |
| Innendurchmesser vor Schrumpfung | 3.2 mm | |
| Innenkleber vorhanden | No | |
| Material | PE, vernetzt | |
| max. Temperatur | 135 °C | |
| min. Temperatur | -55 °C | |
| Schrumpfrate | 2:1 | |
| Schrumpftemperatur | 95 °C | |
| Wanddicke | 0.51 mm | |
| Zollgröße | 1/8 |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 39269097 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
