5070104028 | Raychem

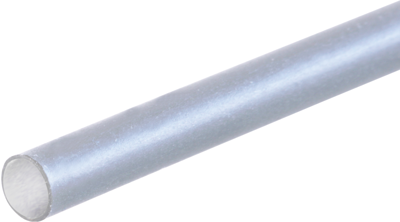

Heatshrink tubing, 2:1, (25.4/12.7 mm), PE, crosslinked, transparent, 5070104028
Unit Price (€ / mtr.)
4.3673 € *
Available: 0 mtr.
Leadtime: 12 Weeks **
Heat shrink tubing, RNF-100-1-0-FSP, Raychem
RNF-100-1-0-FSP is a flexible, flame-retardant, general purpose, polyolefin tubing. This product is designed to provide superior mechanical (abrasion, cutthrough, and strain relief), thermal, and fluid-resistance performance in demanding environments. Widely used to provide insulation and strain relief of wire terminations and connections.
Features
- 2:1 shrink ratio
- Flexible; conforms to irregular shapes
- Flame-retardant
- Wide range of sizes and colors
- RoHS compliant
Technical specifications
| Farbe | transparent | |
| Innendurchmesser nach Schrumpfung | 12.7 mm | |
| Innendurchmesser vor Schrumpfung | 25.4 mm | |
| Innenkleber vorhanden | No | |
| Material | PE, vernetzt | |
| max. Temperatur | 135 °C | |
| min. Temperatur | -55 °C | |
| Schrumpfrate | 2:1 | |
| Schrumpftemperatur | 95 °C | |
| Wanddicke | 0.89 mm | |
| Zollgröße | 1 |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 39269097 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
