5677732003 | Raychem
Heatshrink tubing, 3:1, (12/4 mm), PE, crosslinked, yellow, 5677732003
Unit Price (€ / mtr.)
3.9865 € *
Available: 0 mtr.
Available in 5 Days: 1,992 mtr.
Leadtime: 56 Weeks **
Total Price:
3.99 € *
Price list
Quantity
Price per unit*
1 mtr.
3.9865 €
10 mtr.
3.6771 €
50 mtr.
3.3082 €
100 mtr.
2.9750 €
*incl. VAT plus shipping costs
**Subject to prior sale
Heat shrink tubing, RNF-100-3/8-9-SP, Raychem

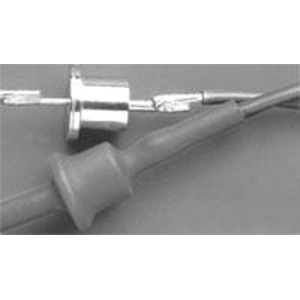

RNF-100-3/8-9-SP is a flexible, flame-retardant, general purpose, polyolefin tubing. This product is designed to provide superior mechanical (abrasion, cutthrough, and strain relief), thermal, and fluid-resistance performance in demanding environments. Widely used to provide insulation and strain relief of wire terminations and connections.
Features
- 2:1 shrink ratio
- Flexible; conforms to irregular shapes
- Flame-retardant
- Wide range of sizes and colors
- RoHS compliant
Technical specifications
| Farbe | gelb | |
| Innendurchmesser nach Schrumpfung | 4 mm | |
| Innendurchmesser vor Schrumpfung | 12 mm | |
| Innenkleber vorhanden | No | |
| Länge | 1.2 m | |
| Material | PE, vernetzt | |
| max. Temperatur | 135 °C | |
| min. Temperatur | -55 °C | |
| Schrumpfrate | 3:1 | |
| Schrumpftemperatur | 80 °C | |
| Wanddicke | 0.75 mm |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 39173200 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
