5677812004 | Raychem
Heatshrink tubing, 3:1, (24/8 mm), PE, crosslinked, blue, 5677812004
Unit Price (€ / pc.)
4.9504 € *
Available: 0 pcs.
Leadtime: 12 Weeks **

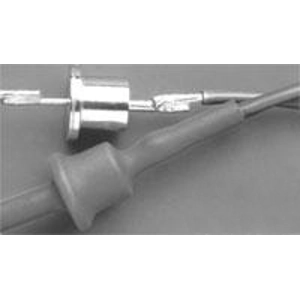

Heat shrink tubing, RNF-3000-1.5/0.5-3-SP, Raychem
RNF-3000-1.5/0.5-3-SP is a flexible, high-shrink-ratio, flame-retardant, general purpose, polyolefin tubing. This product is used for insulation and strain relief of wire terminations and electrical connections. Also is suitable for light-duty harnessing, jacketing, and identification of wires, cables, and electrical and electronic components.
Features
- 3:1 Shrink ratio
- Excellent physical chemical
- Flame-retardant
- RoHS compliant
Technical specifications
| Farbe | blau | |
| Innendurchmesser nach Schrumpfung | 8 mm | |
| Innendurchmesser vor Schrumpfung | 24 mm | |
| Innenkleber vorhanden | No | |
| Länge | 1.2 m | |
| Material | PE, vernetzt | |
| max. Temperatur | 135 °C | |
| min. Temperatur | -55 °C | |
| Schrumpfrate | 3:1 | |
| Schrumpftemperatur | 80 °C | |
| Wanddicke | 1 mm |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 39173200 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
