7284836003 | Raychem

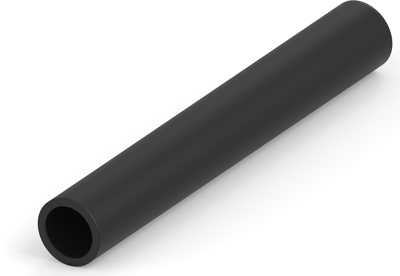

Heatshrink tubing, 2:1, (2.4/1.2 mm), PE, black, 7284836003
Unit Price (€ / mtr.)
30.3093 € *
Available: 0 mtr.
Available in 5 Days: 7 mtr.
Leadtime: 12 Weeks **
Total Price:
30.31 € *
Price list
Quantity
Price per unit*
3 mtr.
30.3093 €
10 mtr.
18.8972 €
*incl. VAT plus shipping costs
**Subject to prior sale
Heat shrink tubing, RNF-3000-3/1-6-SP, Raychem
RNF-3000-3/1-6-SP is a flexible, high-shrink-ratio, flame-retardant, general purpose, polyolefin tubing. This product is used for insulation and strain relief of wire terminations and electrical connections. Also is suitable for light-duty harnessing, jacketing, and identification of wires, cables, and electrical and electronic components.
Features
- 3:1 Shrink ratio
- Excellent physical chemical
- Flame-retardant
- RoHS compliant
Technical specifications
| Colour | black | |
| Inner diameter after shrinkage | 1.2 mm | |
| Inner diameter before shrinkage | 2.4 mm | |
| contains glue inside | No | |
| Material | PE | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Shrinking rate | 2:1 | |
| Shrinking temperature | 65 °C | |
| Wall thickness | 0.55 mm |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
