CV6676-000 | Raychem
Heatshrink tubing, 2:1, (12.7/6.35 mm), PE, black, CV6676-000
Unit Price (€ / pc.)
1.0353 € *
Available: 0 pcs.
Available in 5 Days: 1,500 pcs.
Leadtime: 2 Weeks **
Total Price:
1.04 € *
Price list
Quantity
Price per unit*
81 pcs.
1.0353 €
400 pcs.
0.9639 €
*incl. VAT plus shipping costs
**Subject to prior sale

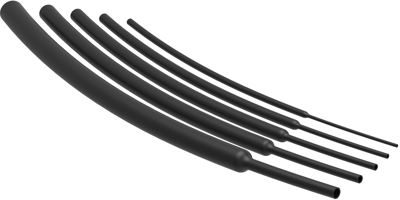

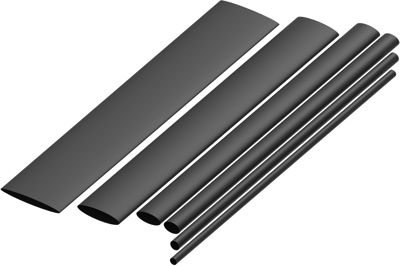

Heat shrink tubing, CV6676-000, Raychem
The CV6676-000 is a high-quality, heat-shrinkable product for a wide variety of uses. It has become the industry standard for insulation, strain relief, wire bundling, and color-coding in both commercial and military applications. This product's tubing has excellent physical, chemical, and electrical properties that meet industrial and military requirements for a highly reliable, general-purpose tubing.
Features
- 2:1 shrink ratio
- Flexible: conforms to irregular shapes
- Flame-retardant
- RoHS compliant
Technical specifications
| Colour | black | |
| Inner diameter after shrinkage | 6.35 mm | |
| Inner diameter before shrinkage | 12.7 mm | |
| Length | 640 mm | |
| Material | PE | |
| max. operating temperature | 135 °C | |
| min. operating temperature | -55 °C | |
| Shrinking rate | 2:1 | |
| Shrinking temperature | 95 °C | |
| Wall thickness | 0.64 mm |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
