EC9861-000 | Raychem
Heatshrink tubing, 2:1, (19/9.5 mm), PE, yellow, EC9861-000
Unit Price (€ / pc.)
2.6537 € *
Available: 0 pcs.
Available in 5 Days: 6,000 pcs.
Leadtime: 12 Weeks **
Total Price:
2.65 € *
Price list
Quantity
Price per unit*
35 pcs.
2.6537 €
200 pcs.
2.6061 €
*incl. VAT plus shipping costs
**Subject to prior sale
Low-fire-hazard wire, EC9861-000, Raychem

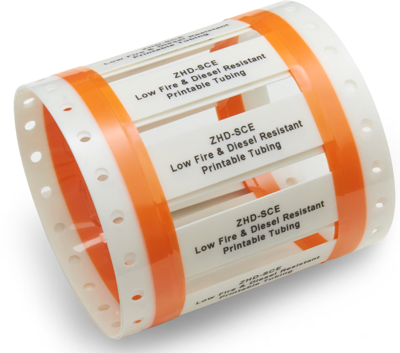

The EC9861-000 is designed specifically to bridge the gap for installations where the highest performance is demanded from an identification sleeve, without compromising on safety or capability. This product also is presented as cut sleeves organised in ladder format.
Features
- Halogen free, low smoke
- Low toxic fumes
- Non-flame propagating
- Shrink ratio 2:1
Technical specifications
| Colour | yellow | |
| Inner diameter after shrinkage | 9.5 mm | |
| Inner diameter before shrinkage | 19 mm | |
| Length | 25 mm | |
| Material | PE | |
| max. operating temperature | 135 °C | |
| min. operating temperature | -55 °C | |
| Shrinking rate | 2:1 | |
| Wall thickness | 0.75 mm | |
| Inch Size | 19.0 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 39173900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
