EJ1480-000 | Raychem

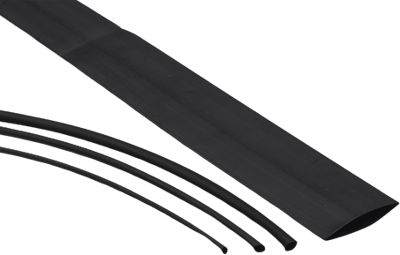

Heatshrink tubing, 2:1, (2.9/1.25 mm), PE, crosslinked, black, EJ1480-000
Unit Price (€ / mtr.)
0.4403 € *
Available: 0 mtr.
Available in 5 Days: 9,800 mtr.
Leadtime: 8 Weeks **
Total Price:
0.44 € *
Price list
Quantity
Price per unit*
197 mtr.
0.4403 €
2000 mtr.
0.4284 €
*incl. VAT plus shipping costs
**Subject to prior sale
Heat shrink tubing, VERSAFIT-1/2-2-FSP, Raychem
VERSAFIT-1/2-2-FSP is a highly flame-retardant, low recovery temperature, heat-shrinkable tubing. This product is a cost-effective choice for many commercial and military applications. Also this tubing is made from a specially formulated, crosslinked polyolefin to provide high flameretardance, excellent flexibility, and a low shrink temperature (to reduce installation time).
Features
- 2:1 Shrink ratio
- Very flexible; doesn’t easily wrinkle when bent
- Hot stamps extremely well
- RoHS compliant
Technical specifications
| Colour | black | |
| Inner diameter after shrinkage | 1.25 mm | |
| Inner diameter before shrinkage | 2.9 mm | |
| contains glue inside | No | |
| Material | PE, crosslinked | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -30 °C | |
| Shrinking rate | 2:1 | |
| Shrinking temperature | 70 °C | |
| Wall thickness | 0.44 mm | |
| Inch Size | 2.5 |
Download
Logistics
| Country of origin | CN |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
