NB10802001 | Raychem

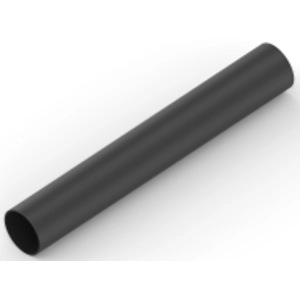

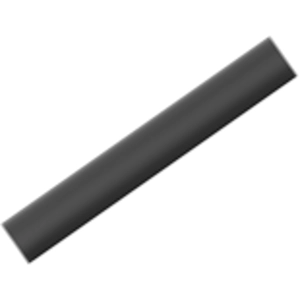

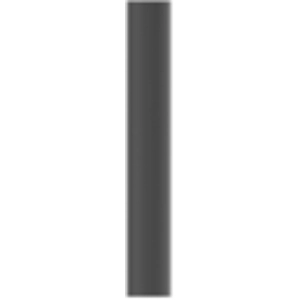

Heatshrink tubing, 4:1, (32/8 mm), PE, crosslinked, black, NB10802001
Unit Price (€ / pc.)
14.9464 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Heat shrink tubing, XFFR-11X4, Raychem
XFFR-11X4 is a halogen-free, flame-retardant, heat-shrinkable tubing. This product can be used for rejacketing and repairing halogen-free cables in any enclosed area where a flame-retardant, halogen-free environment is required. These environments include tunnels, buildings, mass transit vehicles, and ships.
Features
- 3:1 Shrink ratio
- Resists moisture, fungus, and weathering
- Emits minimal amounts of toxic or acid gasses during combustion
- RoHS compliant
Technical specifications
| Farbe | schwarz | |
| Innendurchmesser nach Schrumpfung | 8 mm | |
| Innendurchmesser vor Schrumpfung | 32 mm | |
| Innenkleber vorhanden | No | |
| Länge | 1.2 m | |
| Material | PE, vernetzt | |
| max. Temperatur | 110 °C | |
| min. Temperatur | -55 °C | |
| Schrumpfrate | 4:1 | |
| Schrumpftemperatur | 80 °C | |
| Wanddicke | 2.54 mm |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 39173200 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol |
