NB13942001 | Raychem

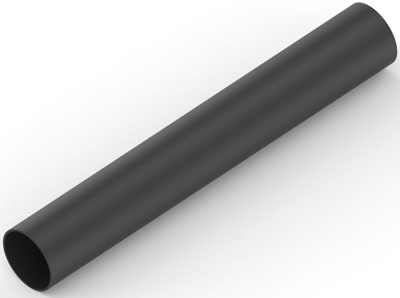

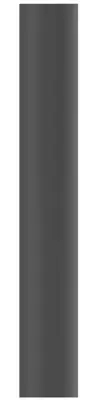

Heatshrink tubing, 2:1, (6.4/3.2 mm), PE, black, NB13942001
Unit Price (€ / pc.)
15.6485 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
15.65 € *
Price list
Quantity
Price per unit*
1 pcs.
15.6485 €
10 pcs.
14.3871 €
50 pcs.
12.9591 €
100 pcs.
11.6620 €
*incl. VAT plus shipping costs
**Subject to prior sale
Heat shrink tubing, NB13942001, Raychem
The NB13942001 is a heat-shrinkable tub that seals and protects simple in-line splices, bimetallic joints, and components from fluids, moisture, and corrosion. This product has thin adhesive lining that bonds to outer tubing and surface below, forming a positive environmental seal. Also repairs damaged wire insulation, especially where flexibility is required and provides one step electrical insulation and moisture sealing.
Features
- 2:1 shrink ratio
- Flexibility of both tubing and adhesive
- Moisture seal that is resistant to bending of the substrate
- Good mechanical strength and cut-through resistance
- RoHS compliant
Technical specifications
| Colour | schwarz | |
| Inner diameter after shrinkage | 3.2 mm | |
| Inner diameter before shrinkage | 6.4 mm | |
| Length | 1.22 m | |
| Material | PE | |
| max. operating temperature | 110 °C | |
| min. operating temperature | -55 °C | |
| Shrinking rate | 2:1 | |
| Shrinking temperature | 95 °C | |
| Wall thickness | 0.87 mm | |
| Inch Size | 1/4 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
