NB14474001 | Raychem

Heatshrink tubing, 2:1, (10.16/4.8 mm), PE, black, NB14474001

Order No.: 72P2947
EAN: 4099891656409
MPN:
NB14474001
Series: VERSAFIT
Raychem

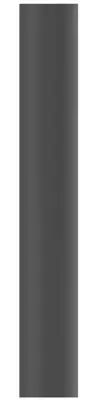

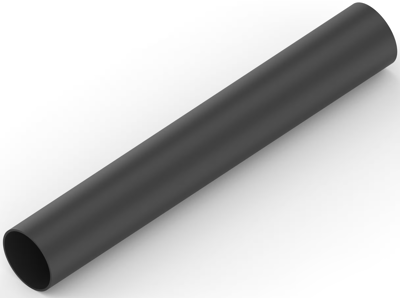

NB14474001 Raychem Heat Shrink Tubing Image 1
NB14474001 Raychem Heat Shrink Tubing Image 2
NB14474001 Raychem Heat Shrink Tubing Image 3
NB14474001 Raychem Heat Shrink Tubing Image 4
Image may differ
Unit Price (€ / mtr.)
0.8687 € *
Available: 0 mtr.
Available in 5 Days: 1,200 mtr.
Leadtime: 12 Weeks **
Total Price:
0.87 € *
Price list
Quantity
Price per unit*
120 mtr.
0.8687 €
360 mtr.
0.7854 €
*incl. VAT plus shipping costs
**Subject to prior sale

Heat shrink tubing, NB14474001, Raychem

The NB14474001 is a heat-shrinkable tub that has a cost-effective choice for many commercial and military applications; electrically insulates and protects in-line components, disconnect terminals, and splices. Bundles wires for very flexible light-duty harnesses. This product's low shrink temperature reduces installation time and the risk of damage to temperature-sensitive components. Also has higher temperature rating, better thermal stability, and higher resistance to physical abuse than noncrosslinked materials.

Features

  • 2:1 shrink ratio
  • Very flexible: doesn’t easily wrinkle when bent
  • Highly flame-retardant
  • Hot stamps extremely well
  • RoHS compliant
Technical specifications
Colour black
Inner diameter after shrinkage 4.8 mm
Inner diameter before shrinkage 10.16 mm
Material PE
max. operating temperature 135 °C
min. operating temperature -55 °C
Shrinking rate 2:1
Shrinking temperature 70 °C
Wall thickness 0.64 mm
Inch Size 3/8
Logistics
Country of origin CZ
Customs tariff number 39269097
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
