2161093004 | Raychem
Insulated strand/wire, 2161093004
Order No.: 71P4989
EAN: 4099891599126
MPN:
2161093004
Unit Price (€ / mtr.)
1.9992 € *
Available: 0 mtr.
Available in 5 Days: 2,028 mtr.
Leadtime: 17 Weeks **

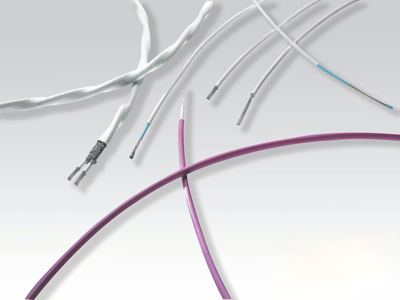

Twisted pair cable, 2161093004, Raychem
The 2161093004 is insulated with modified radiation cross-linked ETFE polymer. Combines the easy handling of a flexible wire with excellent scrape abrasion and cut-through characteristics. This wire has outstanding resistance to chemicals and solvents, excellent electrical arc track resistance, and is not susceptible to UV and moisture degradation. Also provides one of the most comprehensive wiring product ranges for aerospace users, with a wide choice of conductor sizes and insulation wall thicknesses.
Technical specifications
| Core insulation material | ETFE | |
| Outer diameter | 1.73 mm | |
| AWG cross-section | AWG 16 | |
| Colour | blue | |
| Cable material | copper, tin-plated | |
| Rated voltage | 600 V | |
| Test voltage | 2.5 kV | |
| Temperature range (active) | -65 to 150 °C |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
