2820423009 | Raychem

PVDF-switching strand, Spec 44, AWG 24, red, outer Ø 1.02 mm, 2820423009

Order No.: 91F5107
EAN: 4099891168940
MPN:
2820423009
44A0111-24-2
Series: Spec 44
Raychem

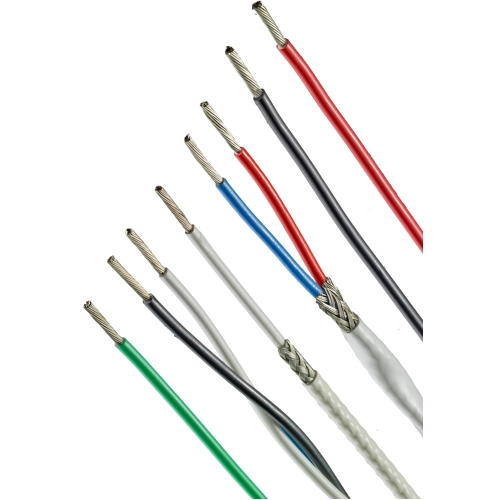

2820423009 Raychem Insulated stranded wires
Image may differ
Unit Price (€ / mtr.)
0.4879 € *
Available: 0 mtr.
Leadtime: 2 Weeks **
Total Price:
0.49 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2000 mtr.
0.4879 €

PVDF-Stranded wire, 2820423009, Raychem

Stranded wire has a dual wall construction which combines the outstanding physical and electrical characteristics of radiation crosslinked polyalkene with the excellent mechanical and chemical properties of radiation cross-linked polyvinylidene fluoride. The result is a wire insulation system that offers a 150°C temperature rating, small size, light weight, solder iron resistance, and resistance to most solvents, fuels and lubricants.

Features

  • Dual wall construction
  • Small size, light weight
  • Resistant to most chemicals and electrical arc tracking

Applications

  • Military electronics
  • Avionics
  • Satellites
  • Aircraft
  • Helicopters
  • Offshore platforms
Technical specifications
Core insulation material PVDF
Outer diameter 1.02 mm
AWG cross-section AWG 24
Colour red
Cable material copper, tin-plated
Rated voltage 600 V
Test voltage 2.5 kV
Temperature range (active) -65 °C to 150 °C
Logistics
Country of origin GB
Customs tariff number 85444995
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
