2857583007 | Raychem
Insulated strand/wire, 2857583007
Order No.: 71P7188
EAN: 4099891599355
MPN:
2857583007
Unit Price (€ / mtr.)
0.9520 € *
Available: 0 mtr.
Available in 5 Days: 1,833 mtr.
Leadtime: 16 Weeks **
Total Price:
361.76 € *
Price list
Quantity
Price per unit*
380 mtr.
0.9520 €
949 mtr.
0.9163 €
*incl. VAT plus shipping costs
**Subject to prior sale

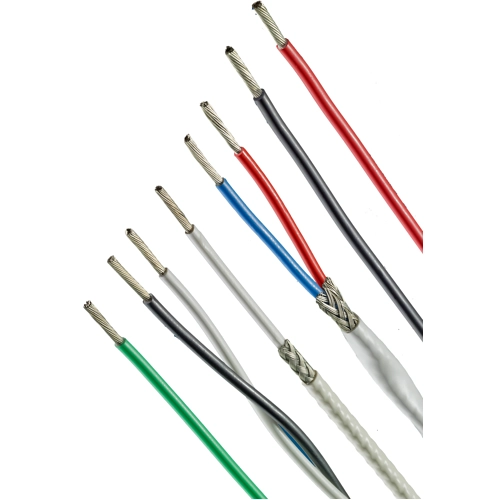

Twisted pair cable, 2857583007, Raychem
The 2857583007 has a dual wall construction which combines the outstanding physical and electrical characteristics of radiation crosslinked polyalkene with the excellent mechanical and chemical properties of radiation cross-linked polyvinylidene fluoride (PVDF). This product is highly flame retardant, nonmelting, does not cold flow, and though mechanically very tough, is easy to handle and install using conventional tools. Also is originally developed for aerospace and military requirements in applications of high density and complex circuitry.
Features
- Small size
- Light weight
- Resistant to most chemicals and electrical arc tracking
Technical specifications
| Core insulation material | PVDF | |
| Outer diameter | 0.86 mm | |
| AWG cross-section | AWG 26 | |
| Colour | grau | |
| Cable material | Kupfer, verzinnt | |
| Rated voltage | 600 V | |
| Test voltage | 2.5 kV | |
| Temperature range (active) | -65 bis 150 °C |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
