2857593009 | Raychem

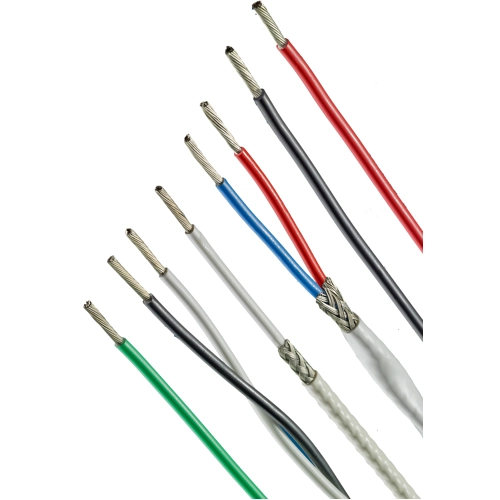

PVDF-switching strand, Spec 44, AWG 26, white, outer Ø 0.86 mm, 2857593009
Unit Price (€ / mtr.)
0.2285 € *
Available: 3,280 mtr.
Leadtime: 2 Weeks **
Stranded wire, 2857593009, RAYCHEM
This wire has excellent chemical and mechanical properties, with outer sheath made of radiation cross-linked PVDF.
Features
- Mechanical resistance
- Good chemical resistance
- Double-walled insulation
Technical specifications
| Aderisolationsmaterial | PVDF | |
| Außendurchmesser | 0.86 mm | |
| AWG-Leiterquerschnitt | AWG 26 | |
| Farbe | weiß | |
| Leitermaterial | Kupfer, verzinnt | |
| Nennspannung | 600 V | |
| Prüfspannung | 2.5 kV | |
| Temperaturbereich (bewegt) | -65 °C bis 150 °C |
Download
Logistics
| Ursprungsland | GB |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
