047753-000 | Raychem
TE Connectivity 047753-000
Order No.: 34P5863
EAN: 4099889715163
MPN:
047753-000
STXR40AB00-2020BI
Unit Price (€ / pc.)
246.0087 € *
Available: 0 pcs.
Available in 5 Days: 5 pcs.
Leadtime: 43 Weeks **
Total Price:
246.01 € *
Price list
Quantity
Price per unit*
1 pcs.
246.0087 €
3 pcs.
241.7723 €
*incl. VAT plus shipping costs
**Subject to prior sale

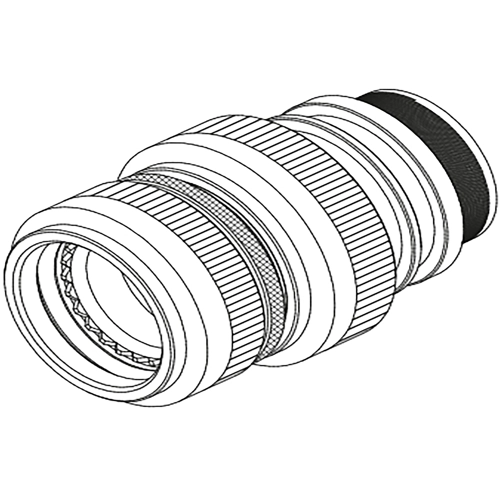

Tinel-Lock-Adapter, 047753-000, TE Connectivity
Pluggable I/O Accessory Type: Tinel-Lock Adapter, Adapter Angle: Straight, Termination Device Type: Side-Entry Tinel-Lock Ring, Tinel-Lock Adapter, Tinel-Lock Ring, Connector Shell Size: 21,G, Color: Olive Drab, Backshell Material: Aluminum, Adapter Plating Material: Cadmium (AMS-QQ-P-416, Type II, Class 3), TE Adapter Code: 40, Adapter Entry Size: 20, Overbraid Termination: Tinel-Lock Ring, Cable Entry Diameter: 0.2-31.8 mm, Cable Diameter Range: 12.7-20.7 mm, Salt Spray Resistance: 500 Hr, Operating Temperature Range: -65-175 °C.
Technical specifications
| Ausführung | Adapter | |
| Gehäusematerial | Aluminium | |
| Kabeldurchmesser | 12,7 bis 20,7 mm | |
| Orientierung | gerade |
Download
Logistics
| Ursprungsland | MX |
| Zolltarifnummer | 85389091 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Cadmium |
