192841-000 | Raychem
TE Connectivity/Raychem 192841-000
Order No.: 34P5831
EAN: 4099889714913
MPN:
192841-000
TXR76AB00-1607AI
Unit Price (€ / pc.)
137.8734 € *
Available: 0 pcs.
Leadtime: 35 Weeks **

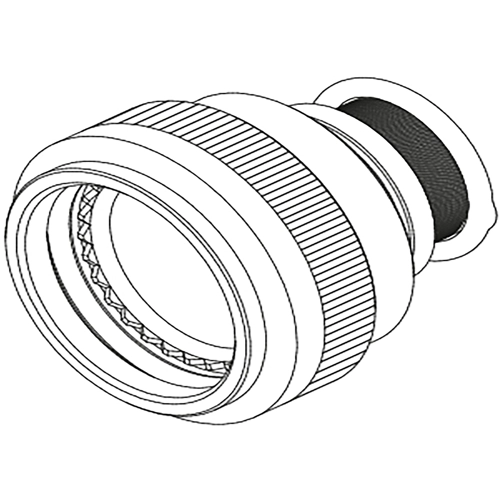

Ruggedized Backshell and Adapter, 192841-000, Raychem
Termination Device Included: TR07AI, Adapter Angle: Straight, Termination Device Type: Side-Entry Tinel-Lock Ring, Tinel-Lock Adapter, Tinel-Lock Ring, Connector Shell Size: 16, Color: Olive Drab, Backshell Material: Aluminum, Adapter Plating Material: Cadmium (AMS-QQ-P-416, Type II, Class 3), TE Adapter Code: 76, Adapter Entry Size: 7, Overbraid Termination: Tinel-Lock Ring, Cable Entry Diameter: 0.2-11.1 mm, Cable Diameter Range: 5.6-8.9 mm, Salt Spray Resistance: 500 Hr, Operating Temperature Range: -65-175 °C.
Technical specifications
| Ausführung | Adapter | |
| Gehäusematerial | Aluminium | |
| Kabeldurchmesser | 5,6 bis 8,9 mm | |
| Orientierung | gerade |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85389091 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Cadmium |
