263493-000 | Raychem
TE Connectivity/Raychem 263493-000
Order No.: 34P5604
EAN: 4099889712872
MPN:
263493-000
TXR40AC90-1810AI
Unit Price (€ / pc.)
411.0974 € *
Available: 0 pcs.
Leadtime: 29 Weeks **

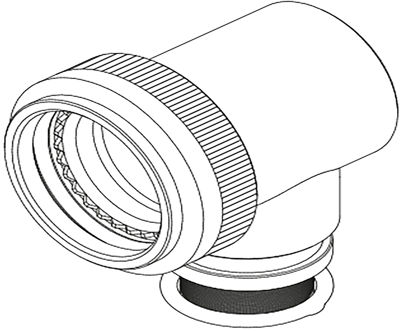

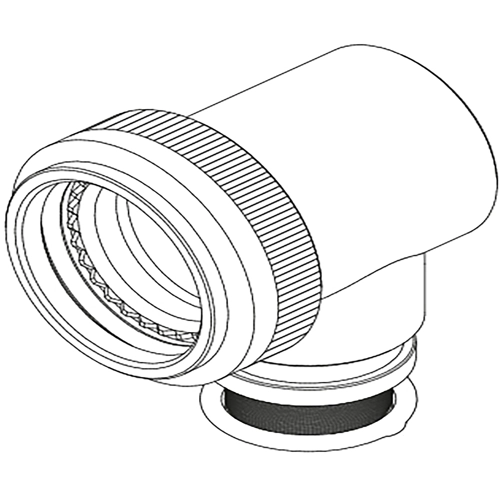

Ruggedized Backshell and Adapter, 263493-000, TE Connectivity
Pluggable I/O Accessory Type: Tinel-Lock Adapter, Adapter Angle: 90, Termination Device Type: Side-Entry Tinel-Lock Ring, Tinel-Lock Adapter, Tinel-Lock Ring, Connector Shell Size: 19,F, Color: Bright, Backshell Material: Aluminum, Adapter Plating Material: Electroless Nickel (AMS-C-26074), TE Adapter Code: 40, Adapter Entry Size: 10, Overbraid Termination: Tinel-Lock Ring, Cable Entry Diameter: 0.2-15.9 mm, Cable Diameter Range: 7.9-12.7 mm, Salt Spray Resistance: 48 Hr, Operating Temperature Range: -65-200 °C.
Technical specifications
| Ausführung | Adapter | |
| Gehäusematerial | Aluminium | |
| Kabeldurchmesser | 7,9 bis 12,7 mm | |
| Orientierung | abgewinkelt |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85389091 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
