570701-000 | Raychem
TE Connectivity/Raychem 570701-000
Order No.: 34P5900
EAN: 4099889715439
MPN:
570701-000
STXR41AB90-0805BI
Unit Price (€ / pc.)
252.9107 € *
Available: 0 pcs.
Leadtime: 43 Weeks **
Total Price:
12,645.54 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
252.9107 €

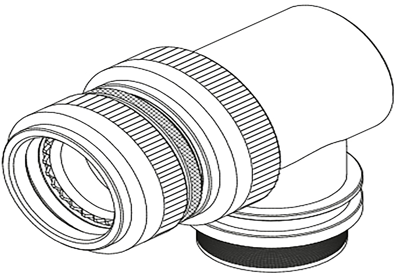

Ruggedized Backshell and Adapter, 570701-000, TE Connectivity
Termination Device Included: TR05BI, Adapter Angle: 90, Termination Device Type: Side-Entry Tinel-Lock Ring, Tinel-Lock Adapter, Tinel-Lock Ring, Connector Shell Size: 08,09, Color: Olive Drab, Backshell Material: Aluminum, Adapter Plating Material: Cadmium (AMS-QQ-P-416, Type II, Class 3), TE Adapter Code: 41, Adapter Entry Size: 5, Overbraid Termination: Tinel-Lock Ring, Cable Entry Diameter: 0.2-7.9 mm, Cable Diameter Range: 4-6.4 mm, Salt Spray Resistance: 500 Hr, Operating Temperature Range: -65-175 °C.
Technical specifications
| Version | Adapter | |
| Shell Material | Aluminium | |
| Cable diameter | 4 bis 6,4 mm | |
| Orientation | abgewinkelt |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Cadmium |
