658537-000 | Raychem
TE Connectivity/Raychem 658537-000
Order No.: 34P5734
EAN: 4099889713985
MPN:
658537-000
TXR41AB90-1408BI
Unit Price (€ / pc.)
241.9746 € *
Available: 0 pcs.
Available in 5 Days: 34 pcs.
Leadtime: 29 Weeks **
Total Price:
241.97 € *
Price list
Quantity
Price per unit*
1 pcs.
241.9746 €
2 pcs.
237.5002 €
*incl. VAT plus shipping costs
**Subject to prior sale

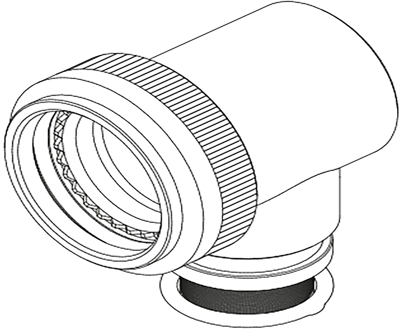

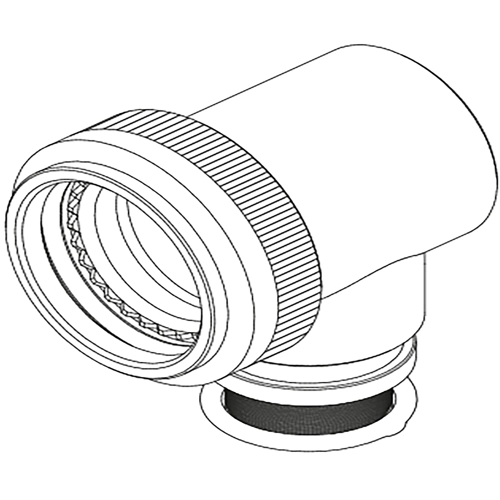

Ruggedized Backshell and Adapter, 658537-000, Raychem
Termination Device Included: TR08BI, Adapter Angle: 90, Termination Device Type: Side-Entry Tinel-Lock Ring, Tinel-Lock Adapter, Tinel-Lock Ring, Connector Shell Size: 14,15, Color: Olive Drab, Backshell Material: Aluminum, Adapter Plating Material: Cadmium (AMS-QQ-P-416, Type II, Class 3), TE Adapter Code: 41, Adapter Entry Size: 8, Overbraid Termination: Tinel-Lock Ring, Cable Entry Diameter: 0.2-12.7 mm, Cable Diameter Range: 6.4-10.2 mm, Salt Spray Resistance: 500 Hr, Operating Temperature Range: -65-175 °C.
Technical specifications
| Ausführung | Adapter | |
| Gehäusematerial | Aluminium | |
| Kabeldurchmesser | 6,4 bis 10,2 mm | |
| Orientierung | abgewinkelt |
Download
Logistics
| Ursprungsland | IN |
| Zolltarifnummer | 85389091 |
Compliance
| RoHS konform | No |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Cadmium |
