680609-000 | Raychem
TE Connectivity/Raychem 680609-000
Order No.: 34P5484
EAN: 4099889711721
MPN:
680609-000
TXR40AB45-1408BI
Unit Price (€ / pc.)
642.3858 € *
Available: 0 pcs.
Leadtime: 43 Weeks **

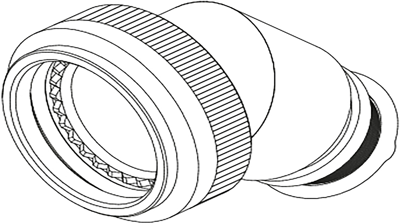

Ruggedized Backshell and Adapter, 680609-000, TE Connectivity
Termination Device Included: TR08BI, Adapter Angle: 45, Termination Device Type: Side-Entry Tinel-Lock Ring, Tinel-Lock Adapter, Tinel-Lock Ring, Connector Shell Size: 15,D, Color: Olive Drab, Backshell Material: Aluminum, Adapter Plating Material: Cadmium (AMS-QQ-P-416, Type II, Class 3), TE Adapter Code: 40, Adapter Entry Size: 8, Overbraid Termination: Tinel-Lock Ring, Cable Entry Diameter: 0.2-12.7 mm, Cable Diameter Range: 6.4-10.2 mm, Salt Spray Resistance: 500 Hr, Operating Temperature Range: -65-175 °C.
Technical specifications
| Ausführung | Adapter | |
| Gehäusematerial | Aluminium | |
| Kabeldurchmesser | 6,4 bis 10,2 mm | |
| Orientierung | abgewinkelt |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85389091 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Cadmium |
