834219-000 | Raychem
TE Connectivity/Raychem 834219-000
Order No.: 34P5393
EAN: 4099889710816
MPN:
834219-000
TXR40AB00-1204AI
Unit Price (€ / pc.)
190.9355 € *
Available: 0 pcs.
Available in 5 Days: 9 pcs.
Leadtime: 18 Weeks **

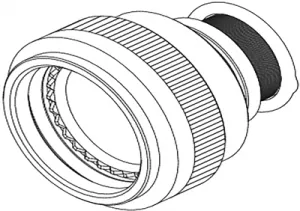

Ruggedized Backshell and Adapter, 834219-000, Raychem
Pluggable I/O Accessory Type: Tinel-Lock Adapter, Adapter Angle: Straight, Termination Device Type: Side-Entry Tinel-Lock Ring, Tinel-Lock Adapter, Tinel-Lock Ring, Connector Shell Size: 13,C, Color: Olive Drab, Backshell Material: Aluminum, Adapter Plating Material: Cadmium (AMS-QQ-P-416, Type II, Class 3), TE Adapter Code: 40, Adapter Entry Size: 4, Overbraid Termination: Tinel-Lock Ring, Cable Entry Diameter: 0.2-6.4 mm, Cable Diameter Range: 3.2-5.1 mm, Salt Spray Resistance: 500 Hr, Operating Temperature Range: -65-175 °C.
Technical specifications
| Ausführung | Adapter | |
| Gehäusematerial | Aluminium | |
| Kabeldurchmesser | 3,2 bis 5,1 mm | |
| Orientierung | gerade |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85389091 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Cadmium, Cadmiumchlorid, Cadmiumfluorid |
