F17064-000 | Raychem
TE Connectivity/Raychem F17064-000
Order No.: 34P5839
EAN: 4099889714944
MPN:
F17064-000
TXR76AU90-1006BI
Unit Price (€ / pc.)
189.0553 € *
Available: 0 pcs.
Available in 5 Days: 5 pcs.
Leadtime: 19 Weeks **

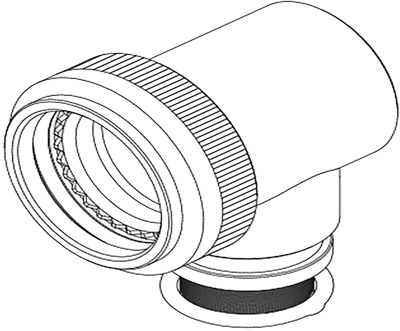

Ruggedized Backshell and Adapter, F17064-000, TE Connectivity
Termination Device Included: TR06BI, Adapter Angle: 90, Termination Device Type: Side-Entry Tinel-Lock Ring, Tinel-Lock Adapter, Tinel-Lock Ring, Connector Shell Size: 10, Color: Olive Drab, Backshell Material: Aluminum, Adapter Plating Material: Zinc Cobalt, TE Adapter Code: 76, Adapter Entry Size: 6, Overbraid Termination: Tinel-Lock Ring, Cable Entry Diameter: 0.2-9.5 mm, Cable Diameter Range: 4.8-7.6 mm, Salt Spray Resistance: 48 Hr, Operating Temperature Range: -65-175 °C.
Technical specifications
| Ausführung | Adapter | |
| Gehäusematerial | Aluminium | |
| Kabeldurchmesser | 4,8 bis 7,6 mm | |
| Orientierung | abgewinkelt |
Download
Logistics
| Ursprungsland | IN |
| Zolltarifnummer | 85389099 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
