NYS367-5 | REAN
RCA chassis socket, Cincheinbaubuchse, 1 A, löten, NYS367-5
Unit Price (€ / pc.)
2.1896 € *
Available: 0 pcs.
Leadtime: 1 Week **

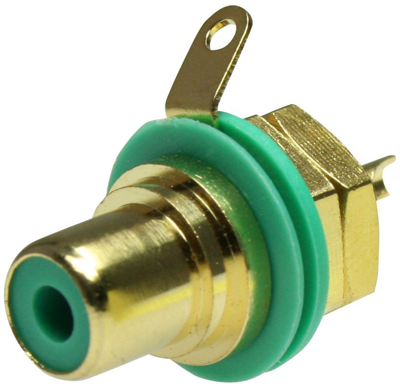

RCA panel jacks, type NEUTRIK/REAN NYS.
With bushing mount, colored insulating ring, solder connection; Contact material: brass, 0.2 µm gold plating. Rated current per contact: 1.0 A. Contact resistance: max. 10 mohm. Dielectric strength: 0.5 kVDC. Operating temperatures: –20 to +70 °C.
Type: NYS367–5, green
Technical specifications
| Version | socket | |
| diameter | 8.3 mm | |
| Colour Marking | green | |
| Shell Material | metal | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | built-in mounting | |
| Pin number | 2 pole |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
