NYS372P-BG | REAN
RCA jack, Cinchkupplung, 1 A, löten, NYS372P-BG
Unit Price (€ / pc.)
1.8445 € *
Available: 12 pcs.
Leadtime: 5 Weeks **
Total Price:
1.84 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8445 €
25 pcs.
1.5470 €
100 pcs.
1.4399 €
250 pcs.
1.3685 €
1000 pcs.
1.2495 €
*incl. VAT plus shipping costs
**Subject to prior sale

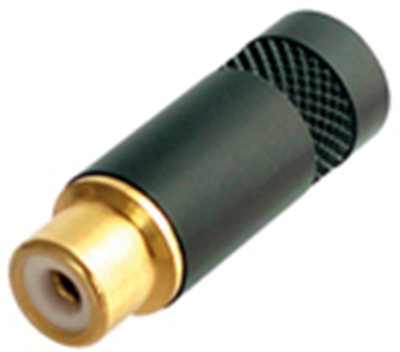

Phono cable jacks, type NEUTRIK/REAN NYS372.
Solder connection; Housing material: CuZn39Pb3, black chromed. Contacts: gold-plated. Rated current per contact: 1.0 A. Contact resistance: max. 10 mohm. Dielectric strength: 0.5 kVDC. Cable diameter: max. 6.0 mm. Operating temperatures: - 20 °C to +70 °C.
Technical attributes (type, contact version): NYS372P - BG, gold - plated
Technical specifications
| Version | jack | |
| diameter | 11 mm | |
| Colour Marking | white | |
| Enclosure | black | |
| Shell Material | metal | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Pin number | 2 pole |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
