RT4FC-B | REAN

XLR jack, 4 pole, gold-plated, 0.22 mm², AWG 24, zinc, RT4FC-B

Order No.: 70F1722
EAN: 4099889857399
MPN:
RT4FC-B
Series: Tiny XLR
REAN
RT4FC-B REAN XLR Connectors
Image may differ
Unit Price (€ / pc.)
2.7251 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
2.73 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 pcs.
2.7251 €

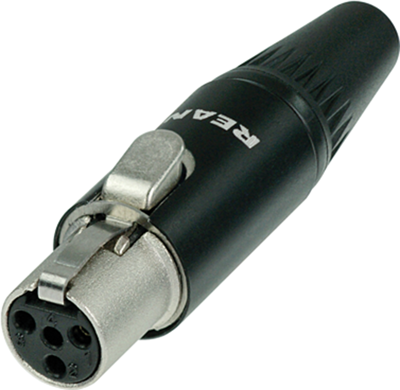

XLR Connector, RT4FC-B, REAN

4 pole TINY xlr female cable connector, black metal shell, gold plated contacts

FEATURES

  • Easy to assemble
  • Robust metal housing with best flex relief
  • Shielded system – high noise immunity and EMI protection
  • Intuitive and rugged locking mechanism provides secure locking system
  • Millionfold proven chuck type strain relief – up to 4.00 mm cable diameter
  • Keyed insert and strain relief to avoid mispositioning / rotation of insert respectively cable
Technical specifications
Version jack
AWG cross-section AWG 24
Enclosure zinc
Cable diameter 2-4.5 mm
Contact connection solder connection
contact surface gold-plated
Cable cross-section 0.22 mm²
Assembly cable assembly
Pin number 4 pole
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
