RT4MC-B | REAN
XLR plug, 4 pole, gold-plated, 0.22 mm², AWG 24, zinc, RT4MC-B
Unit Price (€ / pc.)
2.5704 € *
Available: 0 pcs.
Leadtime: 1 Week **

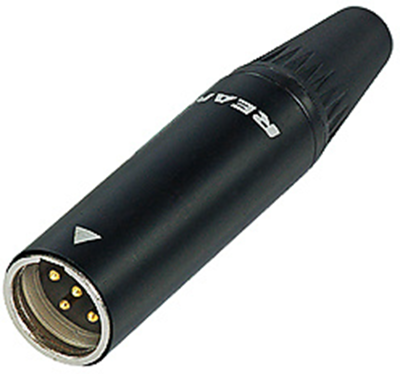

XLR Connector, RT4MC-B, REAN
4 pole TINY xlr male cable connector, black metal shell, gold plated contacts
FEATURES
- Easy to assemble
- Robust metal housing with best flex relief
- Shielded system – high noise immunity and EMI protection
- Intuitive and rugged locking mechanism provides secure locking system
- Millionfold proven chuck type strain relief – up to 4.00 mm cable diameter
- Keyed insert and strain relief to avoid mispositioning / rotation of insert respectively cable
Technical specifications
| Version | plug | |
| AWG cross-section | AWG 24 | |
| Enclosure | zinc | |
| Cable diameter | 2-4.5 mm | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Cable cross-section | 0.22 mm² | |
| Assembly | cable assembly | |
| Pin number | 4 pole |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
