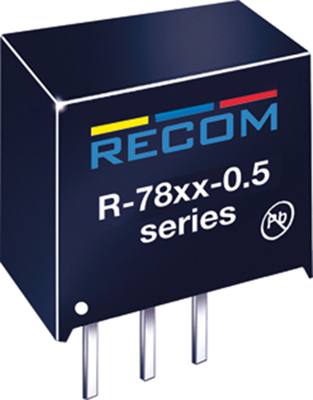

R-7812-0.5 | RECOM
DC converter, 15-32 VDC, 6 W, 1 output, 12 VDC, 97 % efficiency, R-7812-0.5
Unit Price (€ / pc.)
9.401 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
DC/DC converters, type Recom R-78.
Switching mode regulator, pin compatible with LM78xx. Output voltage tolerance: typical/max. ±2.0/±3.0%. Operating temperatures: –40 to +85 °C.
Technical attributes (type, input voltage range, output voltage, output current, efficiency at min./max. input voltage): R-7812-0.5, 15 to 32 V, 12 V, 0.5 A, 97/94 %
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 12 VDC | |
| Ausgangsstrom | 500 mA | |
| Bauform | SIP3 | |
| Breite | 7.5 mm | |
| Eingangsspannungsbereich | 15-32 VDC | |
| Höhe | 10.2 mm | |
| Länge | 11.5 mm | |
| Leistung | 6 W | |
| Wirkungsgrad | 97 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
| Originalverpackung | Stange mit 42 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
