RB-2405D | RECOM

DC/DC converter, 24 VDC, 1 W, 2 outputs, ±5 VDC, 78 % efficiency, RB-2405D

Order No.: 27C6302
EAN: 4099891301415
MPN:
RB-2405D
10001849
Series: RB
RECOM
RB-2405D RECOM DC/DC Converters
Image may differ
Unit Price (€ / pc.)
7.6993 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
7.70 € *
*incl. VAT plus shipping costs
**Subject to prior sale
25 pcs.
7.6993 €

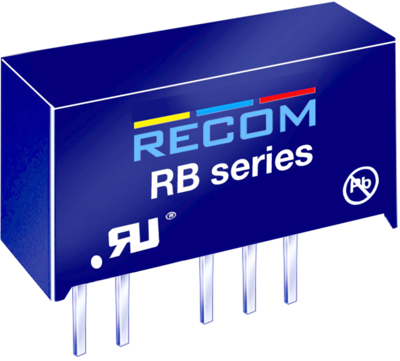

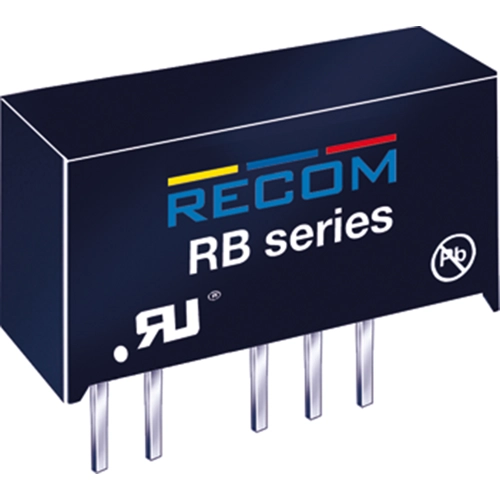

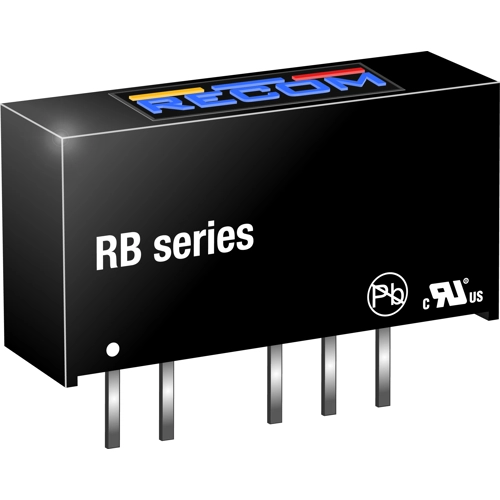

DC/DC Converter, RB-2405D, RECOM

The RB series DC/DC converter has been designed for isolating or converting DC power rails in general purpose applications. Although low cost, it does not compromise on features and offers 1KVDC or 2kVDC isolation , a –40°C to +85°C operating temperature range and optional continuous short circuit protection.

Features

  • Low Cost 1W Converter
  • Power Sharing on Dual Output Version
  • UL94V-0 Package Materia
Technical specifications
Number of outputs 2
Output voltage DC ±5 VDC
Output current 100 mA

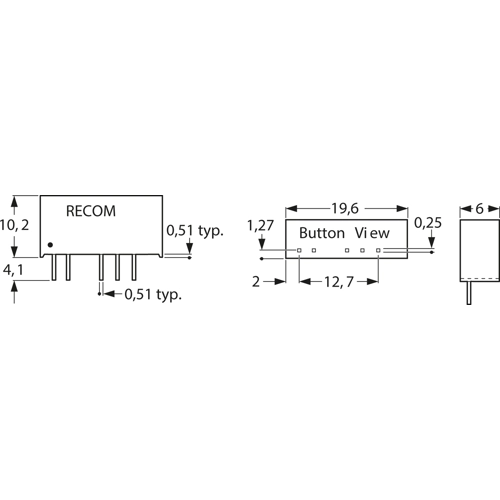

Design SIP7
Width 6 mm
Input voltage AC 24 VDC
Height 10.2 mm
Isolation voltage 1 kV
Length 19.7 mm
Power 1 W
efficiency 78 %
Logistics
Country of origin TW
Customs tariff number 85044095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
