RE-1205S | RECOM
DC converter, 12 VDC, 1 W, 1 output, 5 VDC, 80 % efficiency, RE-1205S
Unit Price (€ / pc.)
6.7711 € *
Available: 0 pcs.
Leadtime: On Request **

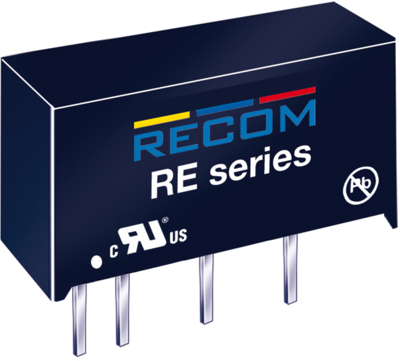

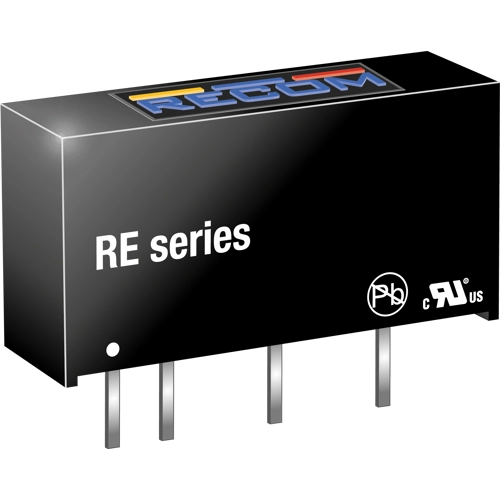

DC/DC Converter, RE-1205S, RECOM
The RE DC/DC converters are typically used in general purpose power isolation and voltage matching applications, and feature a full industrial operating temperature range of -40°C to +85°C without derating.
Features
- Industry Standard Pinout
- UL94V-0 Package Material
- Optional Continuous Short Circuit Protected
- Custom Solutions Available
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 5 VDC | |
| Ausgangsstrom | 200 mA | |
| Bauform | SIP7 | |
| Breite | 6 mm | |
| Eingangsspannungsbereich | 12 VDC | |
| Höhe | 10.2 mm | |
| Isolationsspannung | 1 kV | |
| Länge | 19.7 mm | |
| Leistung | 1 W | |
| Wirkungsgrad | 80 % |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
