624 1325 3 01 | Rennsteig Werkzeuge

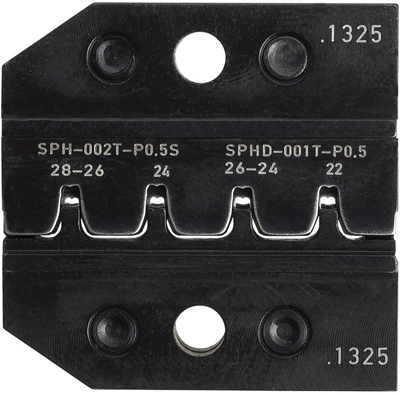

Crimping die for rolled/stamped contacts, AWG 28-22, 624 1325 3 01
Unit Price (€ / pc.)
385.7861 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Crimp insert, 624 1325 3 01, Rennsteig Werkzeuge

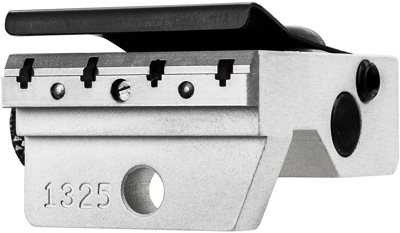

Crimping insert with PEW 12 contact adapter, special crimping pliers for crimping almost all current crimp connectors with an inner conductor cross section of 0.08-50mm², guarantees exact and solder-free electrical connections, parallel crimp jaw feed, only little manual force required due to optimal lever ratio, good handling due to ergonomic center of gravity, One- and two-handed operation possible, various combinations possible due to changeable crimp applicators and terminal holders, adjustable crimping pressure, with ratchet (unlockable) for reliable crimping, ergonomic and non-slip 2k grips, short gripping distance, with crimp applicator for JST SPH series terminals AWG 28-26, AWG 24, AWG 26-24 and AWG 22, F-crimp, Made in Germany
Technical specifications
| Crimping Range (AWG) | AWG 28-22 | |
| Suitable for | rolled/stamped contacts |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 82079091 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
