8736 0000 61 | Rennsteig Werkzeuge
Four-pin crimping pliers for crimp contacts, 0.03-0.5 mm², AWG 32-20, Rennsteig Werkzeuge 8736 0000 61
Unit Price (€ / pc.)
1,058.9929 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
1,058.99 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,058.9929 €
Crimp tool, 8736 0000 61, RENNSTEIG

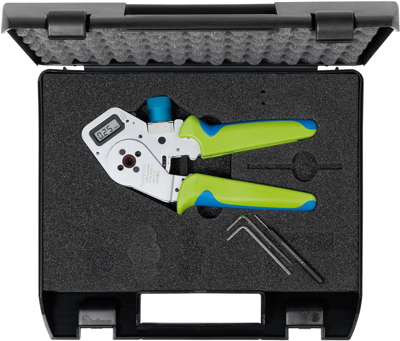

Four-prong crimping pliers DigiCrimp in plastic case, suitable for crimping turned pin and socket contacts, crimp mandrel feed adjustable in steps of 0.01mm and digitally readable, basic setting checked using enclosed plug gauge, possibility of recalibration via RESET function, electronic wear monitoring with warning function, reliable crimping due to ratchet lock and synchronous feed of the crimp jaws, different adjustment functions can be called up, length 175mm, ergonomic and non-slip 2k grips, small grip width, MIL mandrels, capacity 0.03-0.50mm², AWG 32-20, analog M22520/2-01, Made in Germany
Technical specifications
| Crimping Range (AWG) | AWG 32-20 | |
| Crimping Range (mm²) | 0.03-0.5 mm² | |
| Suitable for | crimp contacts | |
| Weight | 820 g | |
| Length | 175 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 82032000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
