109119 | Riegler
Push-in fitting, L 17.4 mm, 10 bar, plastic/brass, for hose outer Ø 4 mm, 109119
Order No.: 63G214
EAN: 4047322022545
MPN:
109119
122.014-4
Unit Price (€ / pc.)
2.4395 € *
Available: 0 pcs.
Available in 3 Days: 882 pcs.
Leadtime: On Request **
Total Price:
2.44 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4395 €
5 pcs.
2.2967 €
10 pcs.
2.1301 €
25 pcs.
1.9873 €
50 pcs.
1.8921 €
*incl. VAT plus shipping costs
**Subject to prior sale

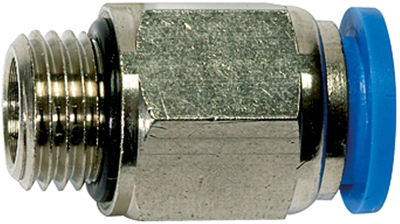

Straight push-in fitting, 109119, Riegler
This fitting is designed for a straight push-in connection, suitable for hoses with an outer diameter of 4 mm. It has a maximum pressure rating of 15 bar for short-term use and features a G 1/4 thread.
Technical specifications
| Pressure | 10 bar | |
| Suitable for | hose outer Ø 4 mm | |
| Thread size | G1/4 | |

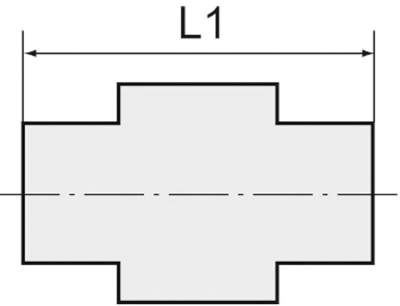

| Length | 17.4 mm | |
| Material | plastic/brass | |
| Medium | compressed air | |
| Accessory Type | push-in fitting |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 39174000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
