112711 | Riegler
Angle piece, L 33.5 mm, 60 bar, brass, for pipe systems, 112711
Order No.: 63G425
EAN: 4047322065740
MPN:
112711
253.18
Unit Price (€ / pc.)
6.6045 € *
Available: 0 pcs.
Available in 3 Days: 1,298 pcs.
Leadtime: On Request **
Total Price:
6.60 € *
Price list
Quantity
Price per unit*
1 pcs.
6.6045 €
5 pcs.
6.2356 €
10 pcs.
5.9143 €
25 pcs.
5.5335 €
50 pcs.
5.2003 €
*incl. VAT plus shipping costs
**Subject to prior sale

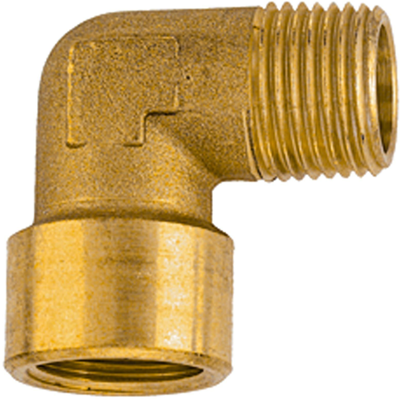

Angled piece, 112711, Riegler
The component is a slanted part designed for both interior and exterior use, with a thread size of 1/2 inch, and an across flat measurement of 21 millimeters. It can withstand a maximum operating pressure of 60 bar and a maximum operating temperature of 150 °C. The material used is bright brass.
Technical specifications
| Pressure | 60 bar | |
| Suitable for | pipe systems | |
| Thread size | G/R1/2 | |

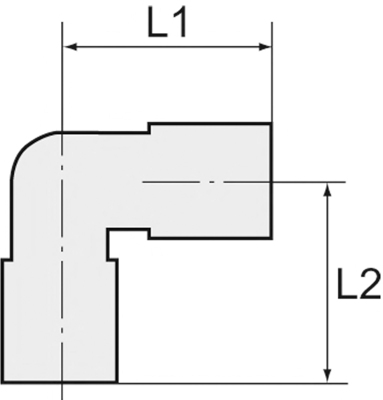

| Length | 33.5 mm | |
| Material | brass | |
| Accessory Type | angle piece |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 74122000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
