136085 | Riegler
Locking screw, L 8 mm, 25 bar, brass, for pipe systems, 136085
Order No.: 63G403
EAN: 4047322502108
MPN:
136085
MS290SKM5
Unit Price (€ / pc.)
1.2971 € *
Available: 0 pcs.
Available in 3 Days: 107 pcs.
Leadtime: On Request **
Total Price:
1.30 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2971 €
5 pcs.
1.1900 €
10 pcs.
1.0710 €
25 pcs.
0.9877 €
50 pcs.
0.9282 €
*incl. VAT plus shipping costs
**Subject to prior sale

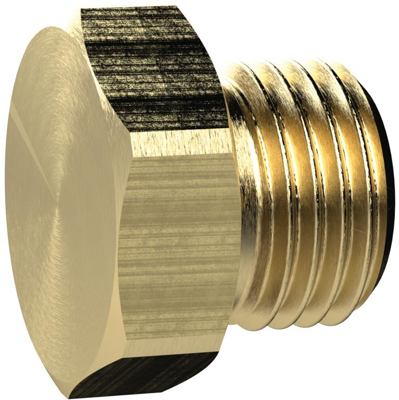

Locking screw, 136085, Riegler

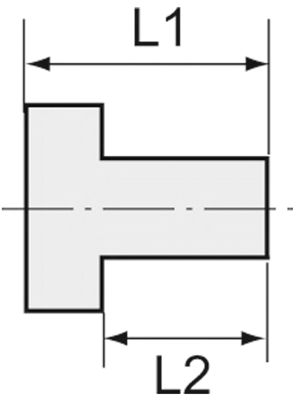

The brass locking screw has an exterior hexagonal shape, with an M5 size and an AF of 8. It is designed to withstand a maximum working pressure of 25 bar and can operate at temperatures up to 150 °C.
Technical specifications
| Pressure | 25 bar | |
| Suitable for | pipe systems | |
| Thread size | M5 | |
| Length | 8 mm | |
| Material | brass | |
| Accessory Type | locking screw |
Download
Logistics
| Country of origin | TR |
| Customs tariff number | 74122000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
