136128 | Riegler
Sleeve, L 36 mm, 25 bar, brass, for pipe systems, 136128
Order No.: 63G248
EAN: 4047322502566
MPN:
136128
MS252MU34
Unit Price (€ / pc.)
4.9385 € *
Available: 0 pcs.
Available in 3 Days: 916 pcs.
Leadtime: On Request **
Total Price:
4.94 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9385 €
5 pcs.
4.6767 €
10 pcs.
4.4268 €
25 pcs.
4.1412 €
50 pcs.
3.8913 €
*incl. VAT plus shipping costs
**Subject to prior sale

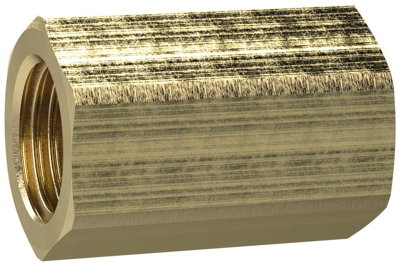

Bushing, 136128, Riegler
The bushing features an external hexagon, G 3/4 size, with an across flats measurement of 32 mm, made of brass material. It has a maximum working pressure of 25 bar and can operate at temperatures up to 150 °C.
Technical specifications
| Pressure | 25 bar | |
| Suitable for | pipe systems | |
| Thread size | G3/4 | |
| Length | 36 mm | |
| Material | brass | |
| Accessory Type | sleeve |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 74122000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
