141515 | Riegler
Quick-release coupling, L 54 mm, 35 bar, steel, for pipe systems, 141515
Order No.: 63G338
EAN: 4047322568074
MPN:
141515
244.71-E
Unit Price (€ / pc.)
17.6715 € *
Available: 0 pcs.
Available in 3 Days: 36 pcs.
Leadtime: On Request **
Total Price:
17.67 € *
Price list
Quantity
Price per unit*
1 pcs.
17.6715 €
5 pcs.
16.7433 €
10 pcs.
15.9103 €
25 pcs.
14.9107 €
*incl. VAT plus shipping costs
**Subject to prior sale

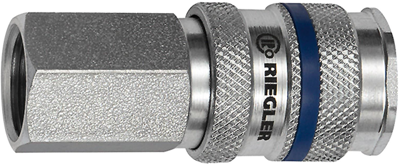

Quick-connect coupling, 141515, Riegler
The quick-connect coupling has an inner diameter of 7.8, made of steel, with a thread size of R 1/4 IT. It can operate within a pressure range of 0 to 35 bar and withstand temperatures from -20 °C to 100 °C. Single-sided blocking, high quality and robust quick connect coupling for high flow values. This quick disconnect coupling is not suitable for direct attachment to pulsating tools.
Applications
- Pneumatic and hydraulic (miniature hydraulics) lines
- Machine and plant engineering
- Measurement
- Monitoring and control systems
- Manufacturing industry
- Medical technology
Technical specifications
| Pressure | 35 bar | |
| Suitable for | pipe systems | |
| Thread size | G1/4 | |
| Length | 54 mm | |
| Material | steel | |
| Accessory Type | quick-release coupling |
Download
Logistics
| Country of origin | TR |
| Customs tariff number | 84812090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
