102929 | Riegler
2/2-way solenoid valve, NC, 0.2-10 bar, 240 V, 102929
Order No.: 63G541
EAN: 4047322159340
MPN:
102929
MV 1367
Unit Price (€ / pc.)
372.9103 € *
Available: 0 pcs.
Available in 3 Days: 3 pcs.
Leadtime: On Request **
Total Price:
372.91 € *
Price list
Quantity
Price per unit*
1 pcs.
372.9103 €
3 pcs.
362.9619 €
*incl. VAT plus shipping costs
**Subject to prior sale

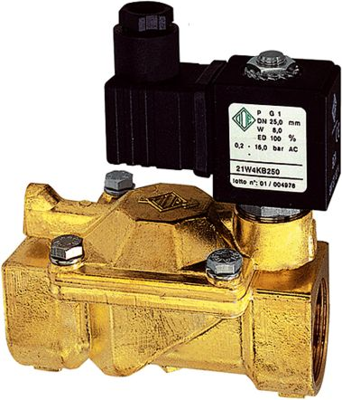

Solenoid valve, 102929, Riegler
The 102929 is a pilot-operated diaphragm valve with a compact design, easy installation and short response time. The media valve for shutting off gaseous or liquid media that are compatible with the materials used, the high-quality materials used for the valves and extensive testing guarantee a long service life.
Features
- The valves do not require a minimum operating pressure
- Any mounting position

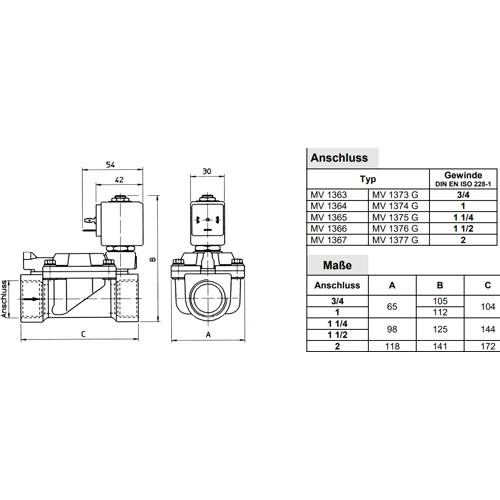

Technical specifications
| Anschluss | Gerätesteckdose PG 9/PG 11 | |
| Ausführung | 2/2-Wege-Magnetventil, NC | |
| Druckbereich | 0,2-10 bar | |
| Nennspannung | 240 V | |
| Nennweite | 50 mm |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 84818099 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
