102939 | Riegler
2/2-way solenoid valve, NC, 0.2-16 bar, 24 V, 8 W, 102939
Order No.: 63G485
EAN: 4047322159401
MPN:
102939
MV 1370 G
Unit Price (€ / pc.)
85.5729 € *
Available: 0 pcs.
Available in 3 Days: 74 pcs.
Leadtime: On Request **
Total Price:
85.57 € *
Price list
Quantity
Price per unit*
1 pcs.
85.5729 €
3 pcs.
81.6221 €
5 pcs.
78.0164 €
*incl. VAT plus shipping costs
**Subject to prior sale

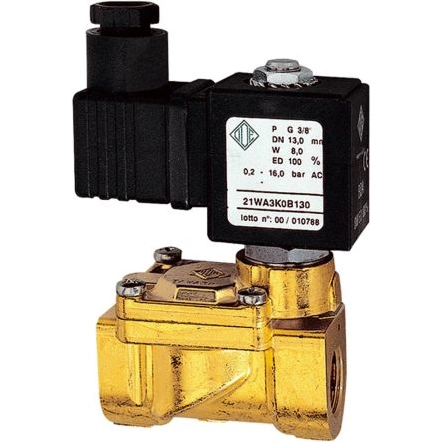

Solenoid valve, 102939, Riegler
The 102939 is a pilot-operated diaphragm valve with a compact design, easy installation and short response time. The media valve for shutting off gaseous or liquid media that are compatible with the materials used, the high-quality materials used for the valves and extensive testing guarantee a long service life.
Features
- The valves do not require a minimum operating pressure
- Any mounting position
Technical specifications
| Anschluss | Gerätesteckdose PG 9/PG 11 | |
| Ausführung | 2/2-Wege-Magnetventil, NC | |
| Druckbereich | 0,2-16 bar | |
| Leistung | 8 W | |
| Nennspannung | 24 V | |
| Nennweite | 13 mm |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 84818099 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
