102941 | Riegler
2/2-way solenoid valve, NC, 0.2-16 bar, 24 V, 5 W, 102941
Order No.: 63G459
EAN: 4047322159449
MPN:
102941
MV 1372 G
Unit Price (€ / pc.)
72.7566 € *
Available: 0 pcs.
Available in 3 Days: 4 pcs.
Leadtime: On Request **
Total Price:
72.76 € *
Price list
Quantity
Price per unit*
1 pcs.
72.7566 €
3 pcs.
69.4008 €
5 pcs.
66.3425 €
*incl. VAT plus shipping costs
**Subject to prior sale

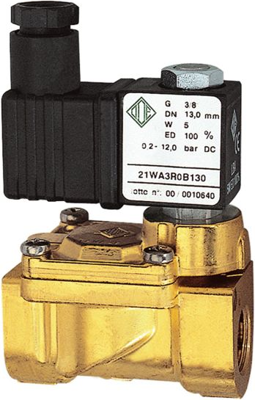

Solenoid valve, 102941, Riegler
The 102941 is a pilot-operated diaphragm valve with a compact design, easy installation and short response time. The media valve for shutting off gaseous or liquid media that are compatible with the materials used, the high-quality materials used for the valves and extensive testing guarantee a long service life.
Features
- The valves do not require a minimum operating pressure
- Any mounting position
Technical specifications
| Anschluss | Gerätesteckdose PG 9/PG 11 | |
| Ausführung | 2/2-Wege-Magnetventil, NC | |
| Druckbereich | 0,2-16 bar | |
| Leistung | 5 W | |
| Nennspannung | 24 V | |
| Nennweite | 13 mm |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 84818099 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
