102944 | Riegler
2/2-way solenoid valve, NC, 0.2-10 bar, 24 V, 8 W, 102944
Order No.: 63G530
EAN: 4047322159500
MPN:
102944
MV 1375 G
Unit Price (€ / pc.)
247.4962 € *
Available: 0 pcs.
Available in 3 Days: 2 pcs.
Leadtime: On Request **
Total Price:
247.50 € *
Price list
Quantity
Price per unit*
1 pcs.
247.4962 €
3 pcs.
240.6299 €
*incl. VAT plus shipping costs
**Subject to prior sale

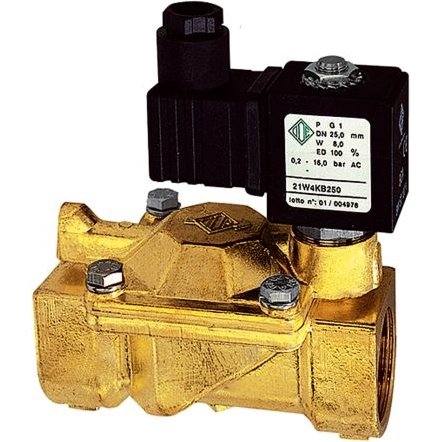

Solenoid valve, 102944, Riegler
The 102944 is a pilot-operated diaphragm valve with a compact design, easy installation and short response time. The media valve for shutting off gaseous or liquid media that are compatible with the materials used, the high-quality materials used for the valves and extensive testing guarantee a long service life.
Features
- The valves do not require a minimum operating pressure
- Any mounting position

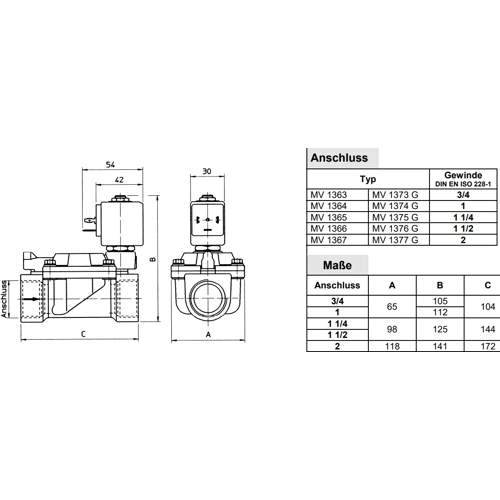

Technical specifications
| Anschluss | Gerätesteckdose PG 9/PG 11 | |
| Ausführung | 2/2-Wege-Magnetventil, NC | |
| Druckbereich | 0,2-10 bar | |
| Leistung | 8 W | |
| Nennspannung | 24 V | |
| Nennweite | 35 mm |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 84818099 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
