102946 | Riegler
2/2-way solenoid valve, NC, 0.2-10 bar, 24 V, 8 W, 102946
Order No.: 63G540
EAN: 4047322159531
MPN:
102946
MV 1377 G
Unit Price (€ / pc.)
372.9103 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
372.91 € *
Price list
Quantity
Price per unit*
1 pcs.
372.9103 €
3 pcs.
362.9619 €
*incl. VAT plus shipping costs
**Subject to prior sale

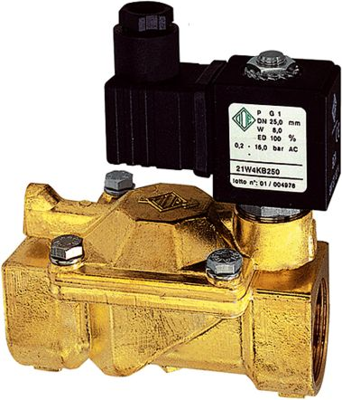

Solenoid valve, 102946, Riegler
The 102946 is a pilot-operated diaphragm valve with a compact design, easy installation and short response time. The media valve for shutting off gaseous or liquid media that are compatible with the materials used, the high-quality materials used for the valves and extensive testing guarantee a long service life.
Features
- The valves do not require a minimum operating pressure
- Any mounting position
Technical specifications
| Connection | cable plug PG 9/PG 11 | |
| Version | 2/2-way solenoid valve, NC | |
| Pressure range | 0.2-10 bar | |
| Power | 8 W | |
| Rated voltage | 24 V | |
| Nominal width | 50 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 84818099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
